Front Clip

Real tear down progress is apparent once the front clip is removed. This is how I pulled it apart.

Fist removed the front bumper and its support.  A little PB Blaster and it came right off no problem.

IMG_0001.JPG IMG_0016.JPG IMG_0015.JPG IMG_0018.JPG IMG_0053.JPG

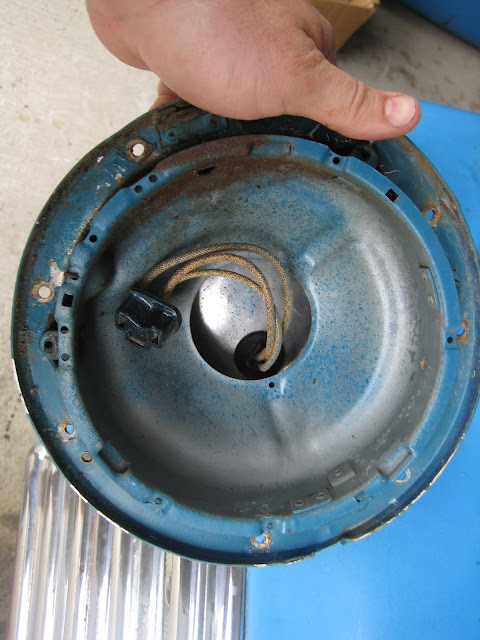

Next I pulled the headlights.  I simply cut the wire to light as I plan on replacing the whole harness anyway.

IMG_0038.JPG IMG_0042.JPG IMG_0045.JPG IMG_0053.JPG IMG_0052.JPG

Next I removed all wire harness attached to the inner fenders as well heater hoses clipped on the passenger side.  Then it was a hunt and remove every bolt I could find!  Easier done with the front wheels removed.  I left the park lights attached to the grill but cut the power to it.

IMG_0074.JPG IMG_0075.JPG IMG_0067.JPG IMG_0051.JPG

With the help of a neighbour I was able to remove the clip all as one.  I wanted to take it off in pieces, but there were hidden bolts keeping the grill attached that I didn’t see until I had it removed.  I’ll obviously have to read up on how to reassemble in the right order once its all painted.

IMG_0078.JPG IMG_0079.JPG IMG_0080.JPG IMG_0083.JPG IMG_0085.JPG

Getting the hood and emblem off  put to use a bolt extractor and three steel drill bits!  Those stupid flat head screws, who invented them?!?

IMG_0006.JPG IMG_0007.JPG IMG_0008.JPG IMG_0010.JPG

IMG_0002.JPG IMG_0001.JPG IMG_0007.JPG IMG_0009.JPG
